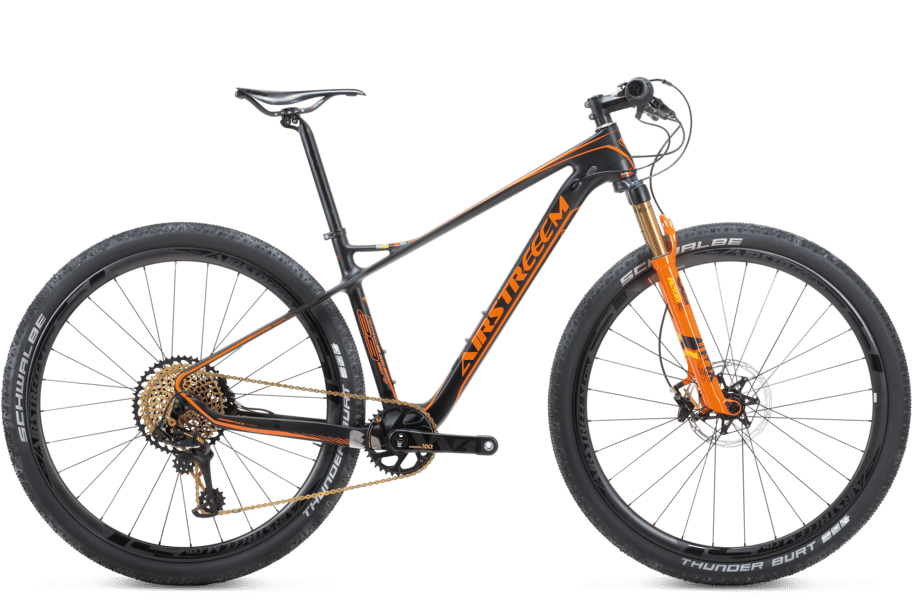

2018 Airstreeem Race SL 29 geometry
Full frame geometry for the 2018 Airstreeem Race SL 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| SM | 618 | 405 | 72.5 | 69.5 | 106 | 600 | 432 | 442 |
| XSS | 618 | 385 | 72.5 | 69.5 | 105 | 580 | 381 | 442 |
| ML | 627 | 422 | 72.5 | 69.5 | 116 | 620 | 452 | 442 |
| L/XL | 637 | 439 | 72.5 | 69.5 | 125 | 640 | 533 | 442 |
All measurements in millimetres unless marked (°) for angles.
