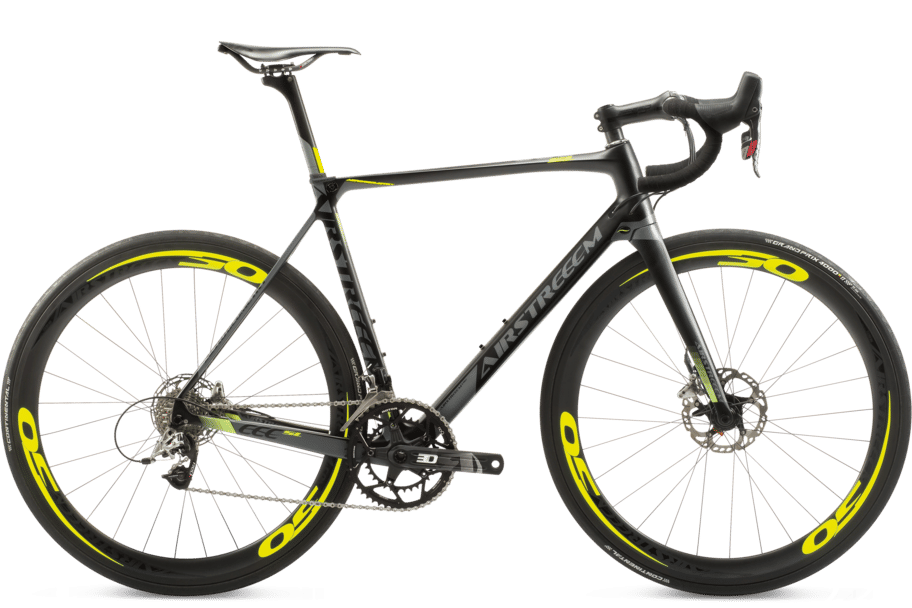

2018 Airstreeem Triple EEE Disc geometry
Full frame geometry for the 2018 Airstreeem Triple EEE Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 513 | 368 | 74.5 | 71.5 | 108 | 510 | 460 | 405 | 961 |
| S | 526 | 384 | 74 | 72.5 | 118 | 535 | 490 | 405 | 972 |
| SM | 544 | 383 | 73.5 | 73 | 138 | 545 | 510 | 405 | 974 |
| M | 558 | 394 | 73.5 | 73 | 153 | 560 | 520 | 405 | 990 |
| L | 577 | 398 | 73 | 73.5 | 173 | 575 | 540 | 408 | 998 |
| XL | 620 | 398 | 72 | 73.5 | 218 | 600 | 580 | 408 | 1011 |
All measurements in millimetres unless marked (°) for angles.
