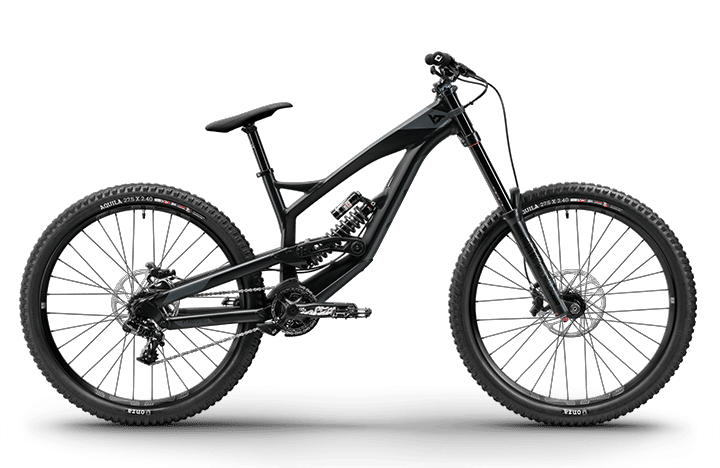

2018 YT Tues geometry
Full frame geometry for the 2018 YT Tues, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 610 | 440 | 74 | 63.5 | 112 | 615 | 400 | 728 | 8 | 435 | 1226 |
| M | 610 | 420 | 74 | 63.5 | 112 | 595 | 400 | 731 | 8 | 435 | 1206 |
| S | 610 | 400 | 74 | 63.5 | 112 | 575 | 400 | 733 | 8 | 435 | 1186 |
All measurements in millimetres unless marked (°) for angles.
