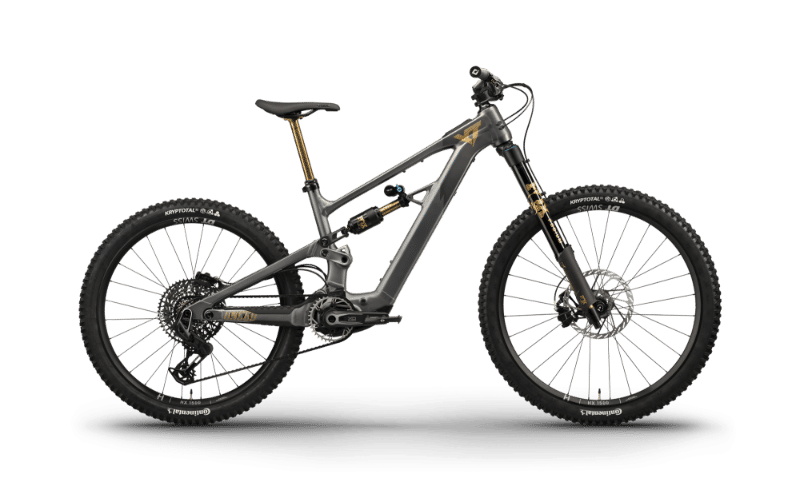

2026 YT Decoy X AL geometry
Full frame geometry for the 2026 YT Decoy X AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 635 | 432 | 78.2 | 63.9 | 100 | 565 | 390 | 774 | 36 | 443 | 1217 |
| M | 643 | 452 | 78.1 | 63.9 | 108 | 587 | 400 | 798 | 36 | 443 | 1241 |
| L | 650 | 472 | 78.1 | 63.9 | 116 | 609 | 420 | 821 | 36 | 443 | 1264 |
| XL | 657 | 492 | 78 | 63.9 | 124 | 631 | 440 | 845 | 36 | 443 | 1288 |
| XXL | 664 | 512 | 78 | 63.9 | 132 | 653 | 460 | 868 | 36 | 443 | 1311 |
All measurements in millimetres unless marked (°) for angles.
