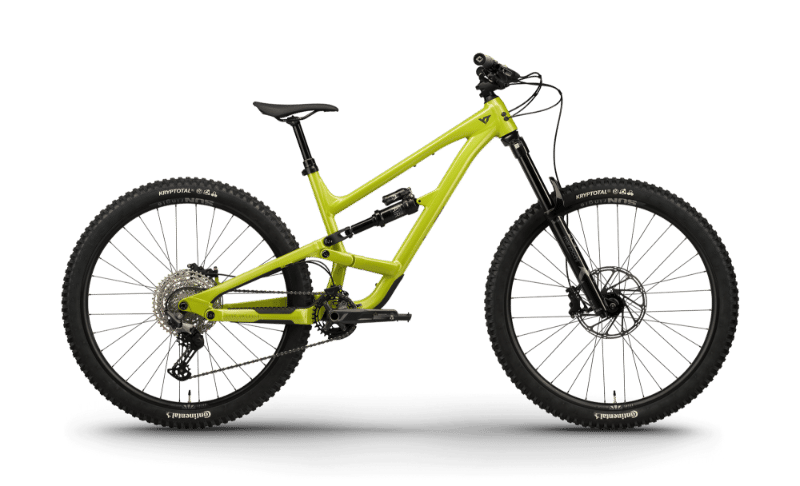

2025 YT Capra 29 AL geometry
Full frame geometry for the 2025 YT Capra 29 AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 625 | 427 | 77.7 | 64.2 | 100 | 563 | 395 | 745 | 27 | 438 | 1204 |
| L | 634 | 467 | 77.6 | 64.2 | 110 | 606 | 445 | 735 | 27 | 438 | 1248 |
| M | 634 | 447 | 77.6 | 64.2 | 110 | 586 | 420 | 737 | 27 | 438 | 1228 |
| XL | 643 | 487 | 77.6 | 64.2 | 120 | 629 | 470 | 746 | 27 | 443 | 1277 |
| XXL | 652 | 507 | 77.5 | 64.2 | 130 | 652 | 495 | 743 | 27 | 443 | 1302 |
All measurements in millimetres unless marked (°) for angles.
