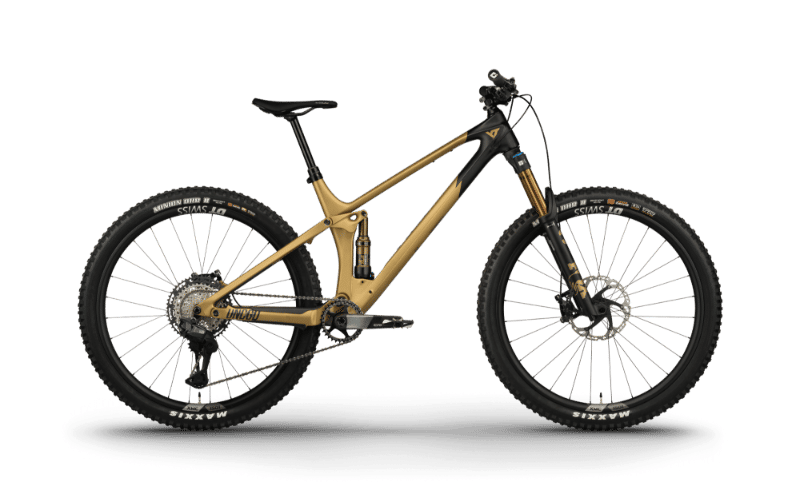

2025 YT Izzo CF geometry
Full frame geometry for the 2025 YT Izzo CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 607 | 424 | 76.6 | 65.7 | 95 | 568 | 400 | 737 | 36 | 432 | 1170 | 44 |
| M | 616 | 445 | 76.5 | 65.7 | 105 | 593 | 425 | 729 | 36 | 432 | 1195 | 44 |
| L | 625 | 467 | 76.4 | 65.7 | 115 | 618 | 450 | 724 | 36 | 432 | 1221 | 44 |
| XL | 639 | 487 | 76.2 | 65.8 | 130 | 643 | 475 | 719 | 36 | 437 | 1251 | 44 |
| XXL | 648 | 508 | 76.1 | 65.8 | 140 | 668 | 500 | 737 | 36 | 437 | 1277 | 44 |
All measurements in millimetres unless marked (°) for angles.
