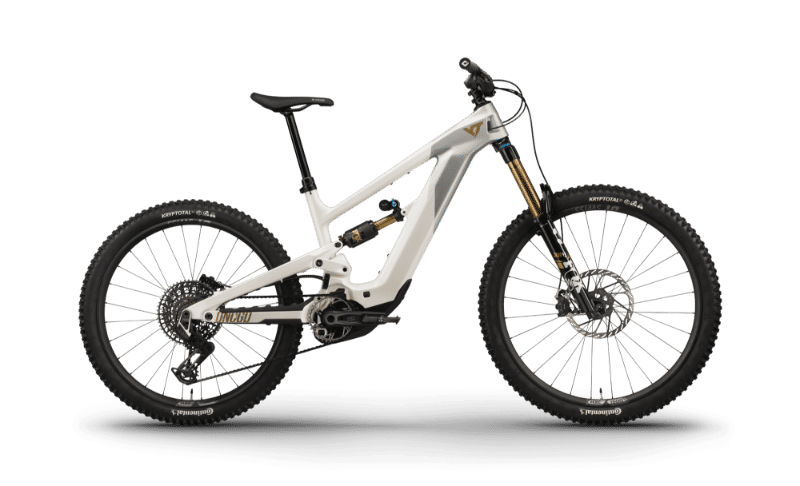

2025 YT Decoy Bosch CF geometry
Full frame geometry for the 2025 YT Decoy Bosch CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 644 | 429 | 77.7 | 63.5 | 100 | 570 | 385 | 746 | 446 | 1227 |
| M | 652 | 449 | 78.2 | 63.5 | 108 | 591 | 400 | 746 | 447 | — |
| L | 659 | 469 | 77.7 | 63.5 | 100 | 614 | 420 | 746 | 447 | 1227 |
| XL | 667 | 489 | 77.5 | 63.5 | 124 | 636 | 440 | 728 | 447 | 1298 |
| XXL | 674 | 509 | 77.5 | 63.5 | 132 | 658 | 460 | 733 | 447 | 1321 |
All measurements in millimetres unless marked (°) for angles.
