2025 YT · DH

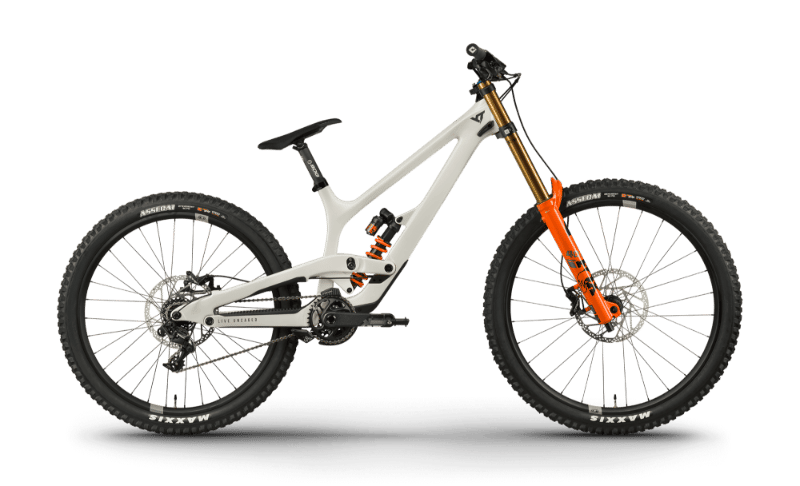

2025 YT Tues CF geometry
Full frame geometry for the 2025 YT Tues CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 635 | 426 | 76.3 | 63.2 | 100 | 581 | 390 | 727 | 30 | 439 | 1230 | 52 |
| M | 640 | 446 | 76.2 | 63.2 | 105 | 603 | 390 | 731 | 30 | 439 | 1252 | 52 |
| L | 644 | 466 | 76.1 | 63.2 | 110 | 626 | 420 | 723 | 30 | 441 | 1276 | 52 |
| XL | 649 | 486 | 76.1 | 63.2 | 115 | 648 | 440 | 729 | 30 | 451 | 1309 | 52 |
| XXL | 653 | 506 | 76 | 63.2 | 120 | 670 | 440 | 730 | 30 | 451 | 1331 | 52 |
All measurements in millimetres unless marked (°) for angles.
