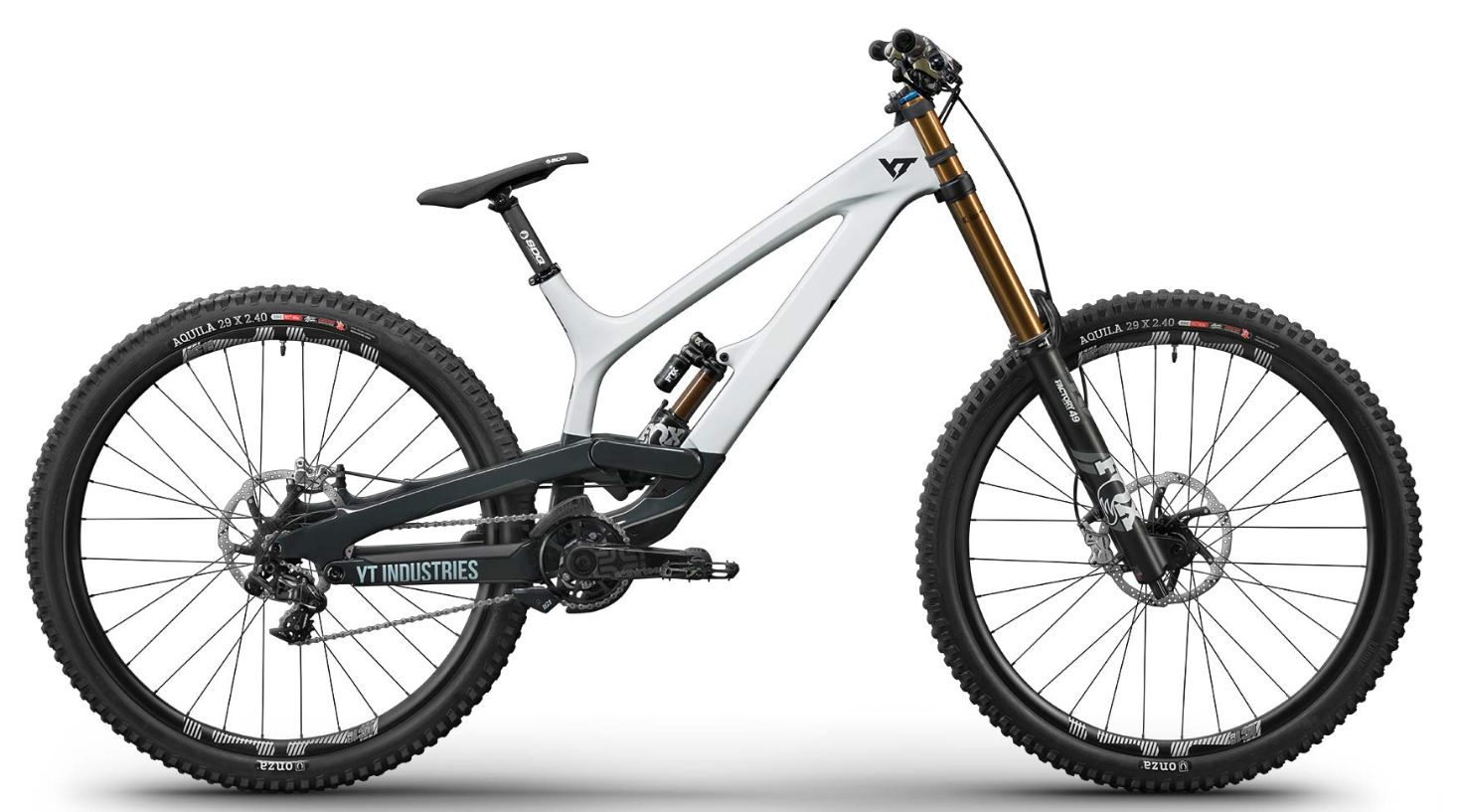

2019 YT Tues CF 29 geometry
Full frame geometry for the 2019 YT Tues CF 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Regular | 629 | 460 | 73.2 | 63.5 | 100 | 651 | 420 | 843 | 25 | 827 | 440 | 1266 |
| Long | 636 | 480 | 73 | 63.5 | 108 | 675 | 420 | 847 | 25 | 851 | 440 | 1290 |
| X-Long | 643 | 505 | 72.8 | 63.5 | 115 | 704 | 420 | 850 | 25 | 879 | 440 | 1318 |
All measurements in millimetres unless marked (°) for angles.
