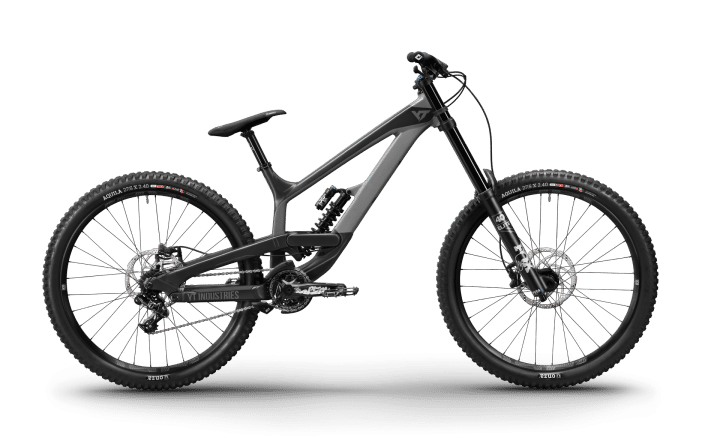

2019 YT Tues AL geometry
Full frame geometry for the 2019 YT Tues AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 601 | 410 | 73.5 | 63.5 | 100 | 584 | 400 | 707 | 7 | 435 | 1199 |
| M | 605 | 429 | 73.5 | 63.5 | 105 | 606 | 400 | 709 | 7 | 435 | 1220 |
| L | 614 | 452 | 73.5 | 63.5 | 115 | 633 | 400 | 714 | 7 | 435 | 1248 |
| XL | 621 | 474 | 73.5 | 63.5 | 123 | 659 | 420 | 723 | 7 | 440 | 1278 |
| XXL | 636 | 495 | 73.5 | 63.5 | 129 | 682 | 420 | 727 | 7 | 440 | 1302 |
All measurements in millimetres unless marked (°) for angles.
