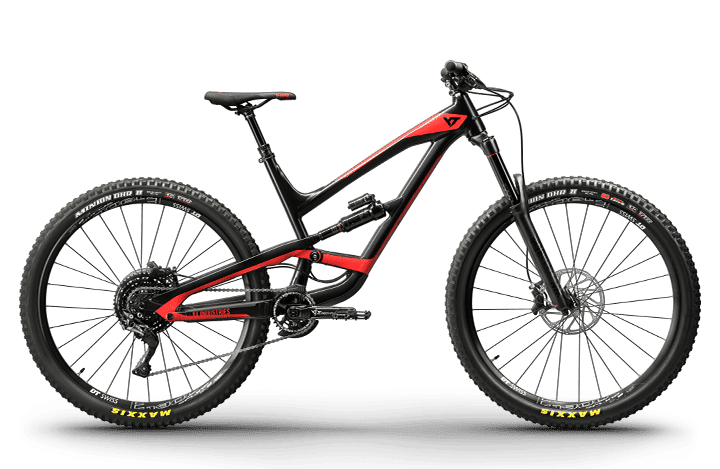

2018 YT Capra 29 geometry
Full frame geometry for the 2018 YT Capra 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 618 | 445 | 76 | 65.5 | 95 | 583 | 420 | 699 | 28 | 435 | 1199 |
| L | 627 | 465 | 76 | 65.5 | 105 | 619 | 445 | 723 | 28 | 435 | 1223 |
| XL | 636 | 485 | 76 | 65.5 | 115 | 642 | 465 | 735 | 28 | 440 | 1252 |
| XXL | 640 | 505 | 76 | 65.5 | 120 | 664 | 490 | 745 | 28 | 440 | 1274 |
All measurements in millimetres unless marked (°) for angles.
