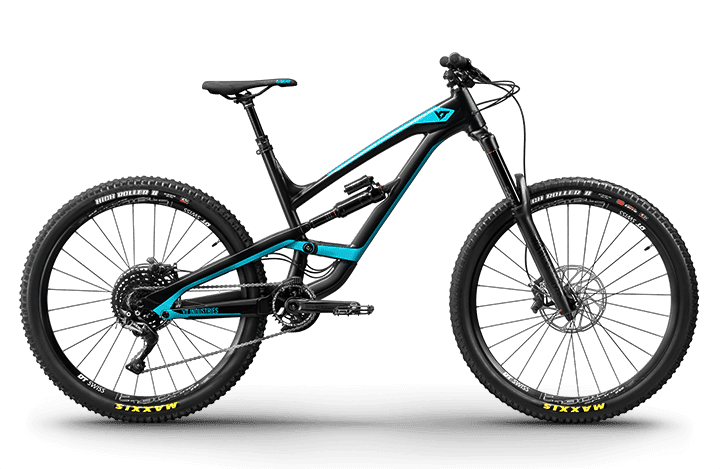

2018 YT Capra 27 geometry
Full frame geometry for the 2018 YT Capra 27, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 420 | 76 | 65.5 | 105 | 572 | 400 | 678 | 11 | 427 | 1168 |
| M | 604 | 440 | 76 | 65.5 | 109 | 593 | 420 | 690 | 11 | 427 | 1190 |
| L | 614 | 460 | 76 | 65.5 | 120 | 615 | 450 | 703 | 11 | 432 | 1215 |
| XL | 623 | 480 | 76 | 65.5 | 130 | 637 | 470 | 719 | 11 | 432 | 1244 |
| XXL | 627 | 500 | 76 | 65.5 | 135 | 659 | 490 | 725 | 11 | 432 | 1266 |
All measurements in millimetres unless marked (°) for angles.
