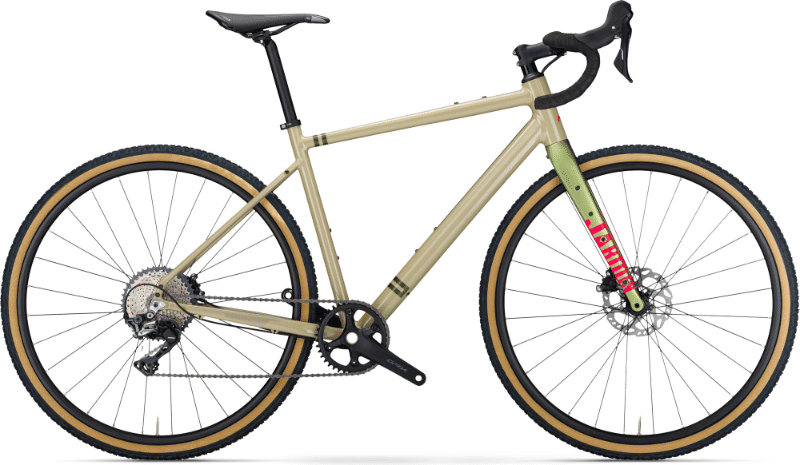

2026 Wilier Jaroon geometry
Full frame geometry for the 2026 Wilier Jaroon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 548 | 384 | 74 | 70 | 100 | 540 | 440 | 440 | 1037 |
| S | 567 | 392 | 74 | 70 | 125 | 555 | 470 | 440 | 1054 |
| M | 587 | 401 | 74 | 70 | 150 | 570 | 500 | 440 | 1071 |
| L | 606 | 409 | 74 | 70 | 175 | 585 | 530 | 440 | 1088 |
| XL | 626 | 417 | 74 | 70 | 200 | 600 | 560 | 440 | 1104 |
All measurements in millimetres unless marked (°) for angles.
