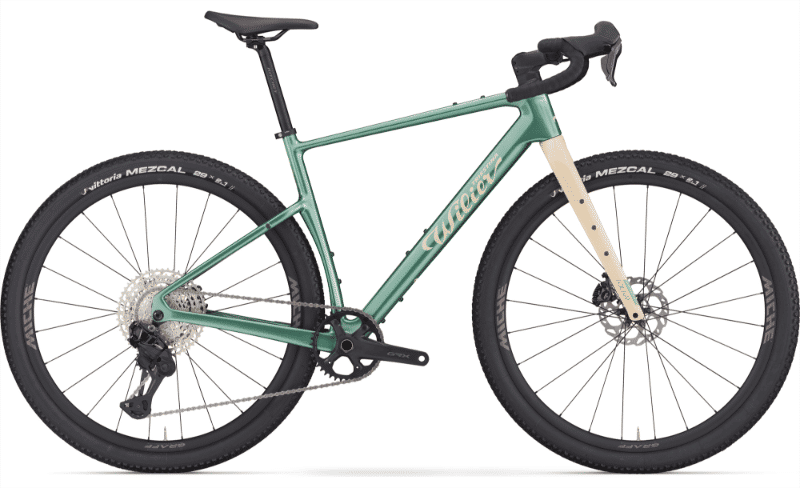

2026 Wilier Adlar geometry
Full frame geometry for the 2026 Wilier Adlar, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 538 | 395 | 75 | 70 | 79 | 542 | 440 | 423 | 1030 |
| S | 562 | 404 | 74.5 | 70 | 104 | 562 | 470 | 423 | 1048 |
| M | 586 | 413 | 74 | 70 | 130 | 583 | 500 | 423 | 1065 |
| L | 610 | 422 | 74 | 70 | 155 | 599 | 530 | 423 | 1083 |
| XL | 634 | 431 | 73.5 | 70 | 181 | 621 | 570 | 423 | 1101 |
All measurements in millimetres unless marked (°) for angles.
