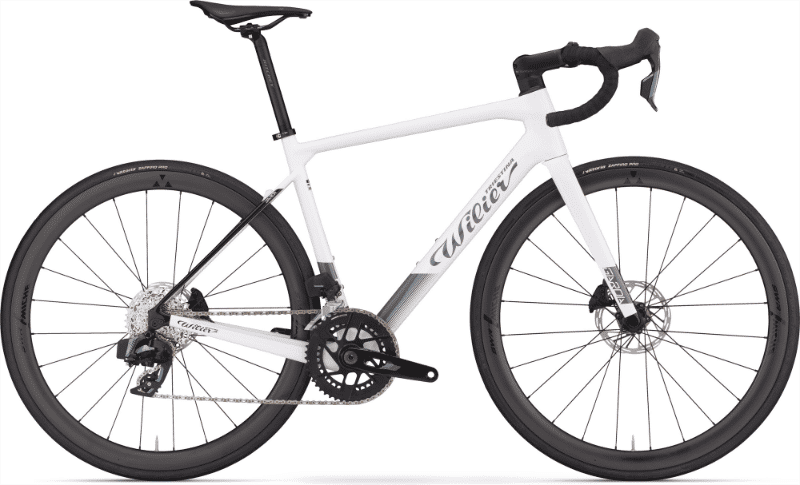

2026 Wilier Garda geometry
Full frame geometry for the 2026 Wilier Garda, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 373 | 75.2 | 70.5 | 112 | 512 | 440 | 409 | 981 |
| S | 531 | 378 | 75 | 71.7 | 125 | 522 | 465 | 409 | 981 |
| M | 548 | 383 | 74 | 72.2 | 144 | 541 | 490 | 411 | 990 |
| L | 566 | 388 | 74 | 72.7 | 161 | 551 | 520 | 411 | 996 |
| XL | 584 | 393 | 73 | 72.8 | 179 | 572 | 550 | 414 | 1009 |
| XXL | 602 | 398 | 73 | 73.1 | 197 | 582 | 580 | 414 | 1016 |
All measurements in millimetres unless marked (°) for angles.
