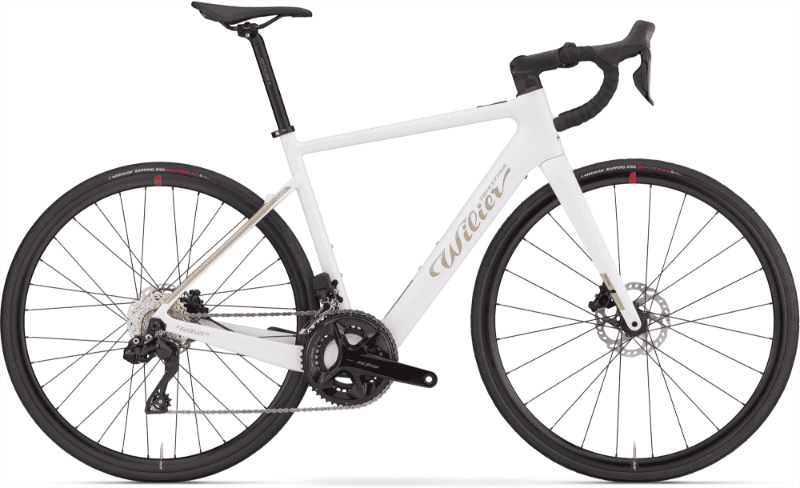

2026 Wilier Garda Hybrid geometry
Full frame geometry for the 2026 Wilier Garda Hybrid, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 515 | 365 | 75 | 70.5 | 104 | 505 | 430 | 406 |
| S | 532 | 376 | 74.5 | 71 | 121 | 525 | 460 | 406 |
| M | 555 | 383 | 74 | 71.5 | 145 | 544 | 500 | 408 |
| L | 576 | 390 | 73.5 | 72 | 166 | 561 | 530 | 410 |
| XL | 595 | 395 | 73 | 72.5 | 175 | 578 | 570 | 411 |
All measurements in millimetres unless marked (°) for angles.
