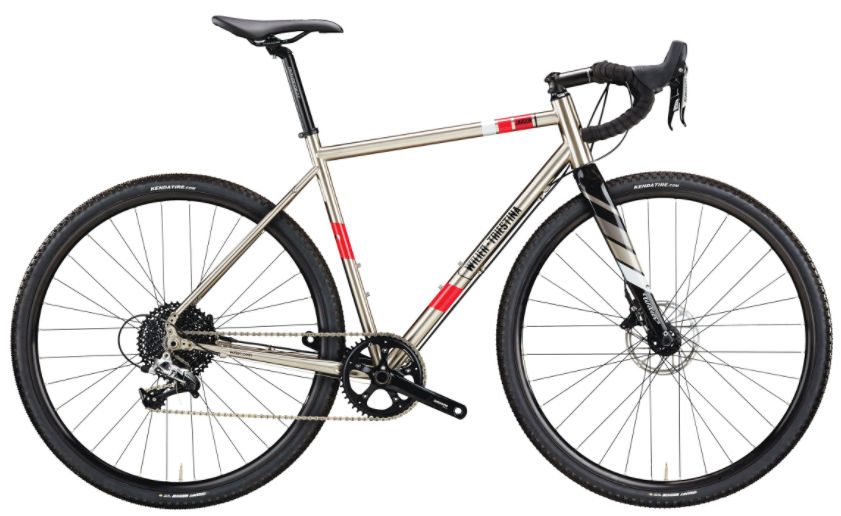

2018 Wilier Jaroon geometry
Full frame geometry for the 2018 Wilier Jaroon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 555 | 373 | 74.5 | 71 | 130 | 527 | 490 | 440 |
| M | 576 | 380 | 74 | 71.5 | 150 | 545 | 510 | 440 |
| L | 595 | 387 | 73.5 | 71.5 | 170 | 563 | 530 | 440 |
| XL | 614 | 393 | 73 | 71.5 | 190 | 581 | 550 | 440 |
All measurements in millimetres unless marked (°) for angles.
