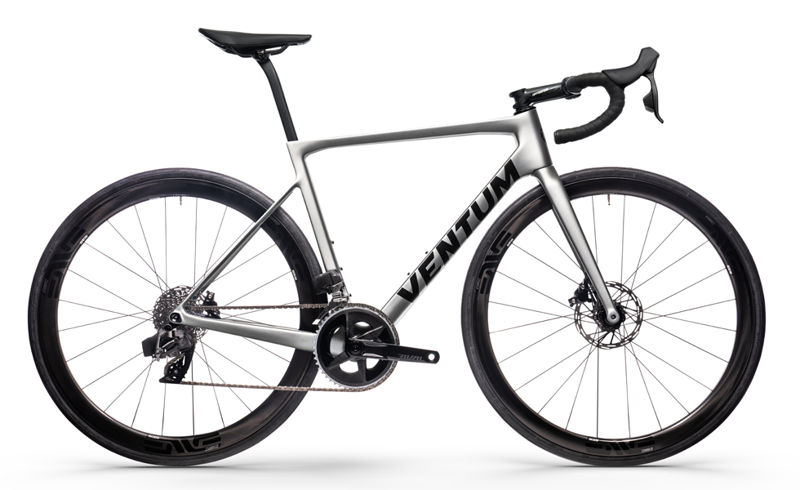

2022 Ventum NS1 geometry
Full frame geometry for the 2022 Ventum NS1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 490 | 365 | 73.5 | 71 | 82 | 513 | 447 | 700 | 69 | 568 | 410 | 972 | 47 | 57.4 |
| S | 509.5 | 378 | 73.5 | 72 | 110 | 529 | 467 | 728 | 69 | 575 | 410 | 975 | 47 | 51.6 |
| M | 536 | 388 | 73 | 73 | 134 | 552 | 493 | 750 | 69 | 584 | 410 | 984 | 47 | 45.9 |
| M/L | 552 | 395 | 73 | 73 | 151 | 564 | 514 | 776 | 69 | 596 | 410 | 996 | 47 | 45.9 |
| L | 585 | 405 | 73 | 73 | 185 | 583 | 546 | 810 | 69 | 614 | 410 | 1014 | 47 | 45.9 |
| XL | 604 | 413 | 73 | 73 | 205 | 598 | 568 | 834 | 69 | 630 | 410 | 1030 | 47 | 45.9 |
All measurements in millimetres unless marked (°) for angles.
