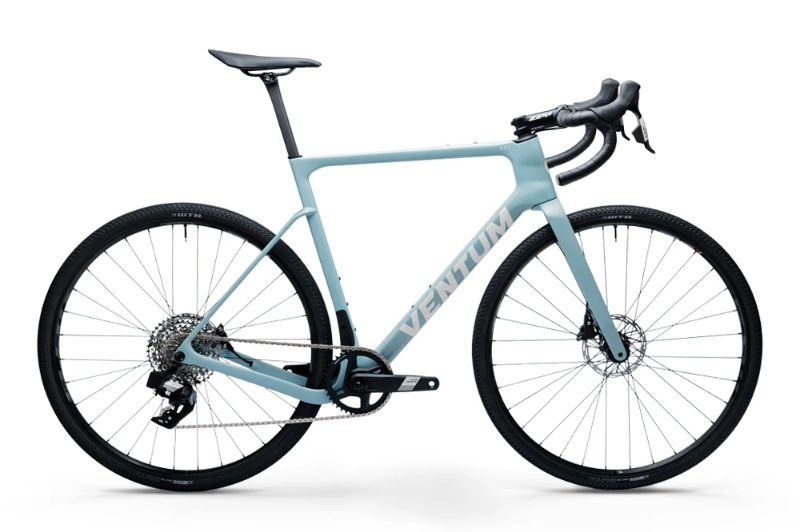

2025 Ventum GS1 geometry
Full frame geometry for the 2025 Ventum GS1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 506 | 369 | 74 | 69 | 90 | 514 | 485 | 778 | 70 | 594 | 420 | 1004 | 50 | 86 |
| S | 522 | 375 | 74 | 69.5 | 105 | 525 | 502 | 795 | 70 | 601 | 420 | 1012 | 50 | 83 |
| M | 545 | 384 | 73.5 | 70 | 128 | 545 | 525 | 817 | 70 | 614 | 420 | 1024 | 50 | 79 |
| M/L | 570 | 393 | 73.5 | 71 | 150 | 562 | 550 | 841 | 70 | 622 | 420 | 1032 | 50 | 72 |
| L | 589 | 402 | 73 | 72 | 166 | 582 | 569 | 860 | 70 | 627 | 420 | 1037 | 50 | 66 |
| XL | 604 | 411 | 73 | 72.5 | 180 | 596 | 584 | 874 | 70 | 636 | 420 | 1046 | 50 | 62 |
All measurements in millimetres unless marked (°) for angles.
