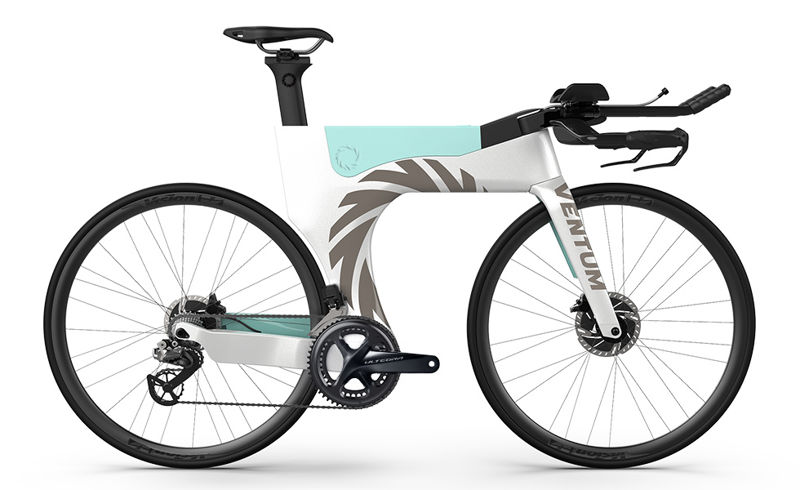

2022 Ventum One geometry
Full frame geometry for the 2022 Ventum One, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Front centre (mm) |
|---|---|---|---|---|---|---|---|
| 46 | 499 | 380 | 82 | 72.6 | 82 | 451 | 565 |
| 48 | 505 | 397 | 82 | 72.5 | 90 | 467 | 582 |
| 51 | 510 | 394 | 82 | 72.5 | 95 | 470 | 584 |
| 54 | 528 | 409 | 82 | 72.5 | 114 | 485 | 603 |
| 56 | 545 | 422 | 82 | 72.5 | 132 | 500 | 622 |
| 58 | 564 | 437 | 82 | 72.5 | 152 | 518 | 643 |
All measurements in millimetres unless marked (°) for angles.
