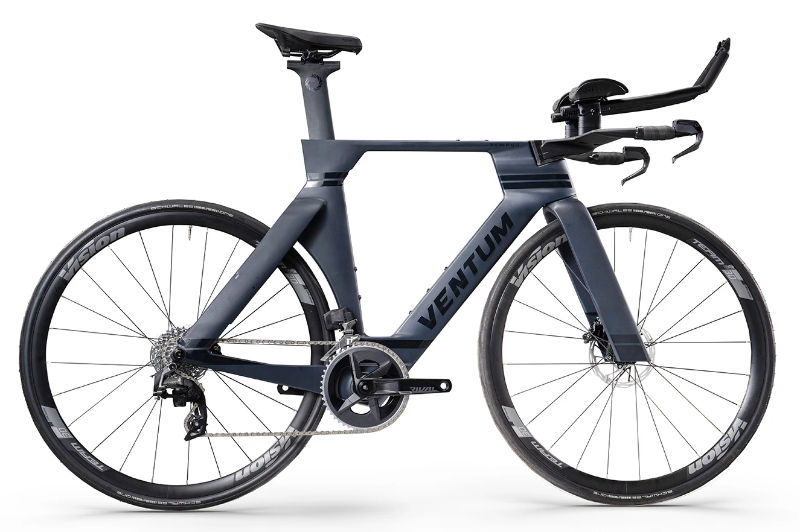

2025 Ventum Tempus geometry
Full frame geometry for the 2025 Ventum Tempus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 466 | 387 | 82 | 72.6 | 47 | 452 | 523 | 790 | 76 | 562 | 410 | 948 | 61 |
| M | 502 | 417 | 82 | 72.5 | 86 | 488 | 559 | 826 | 75 | 603 | 410 | 991 | 61 |
| L | 521 | 431 | 82 | 72.5 | 106 | 504 | 579 | 845 | 75 | 623 | 410 | 1011 | 61 |
| XL | 539 | 444 | 82 | 72.5 | 125 | 520 | 597 | 863 | 75 | 642 | 410 | 1029 | 61 |
All measurements in millimetres unless marked (°) for angles.
