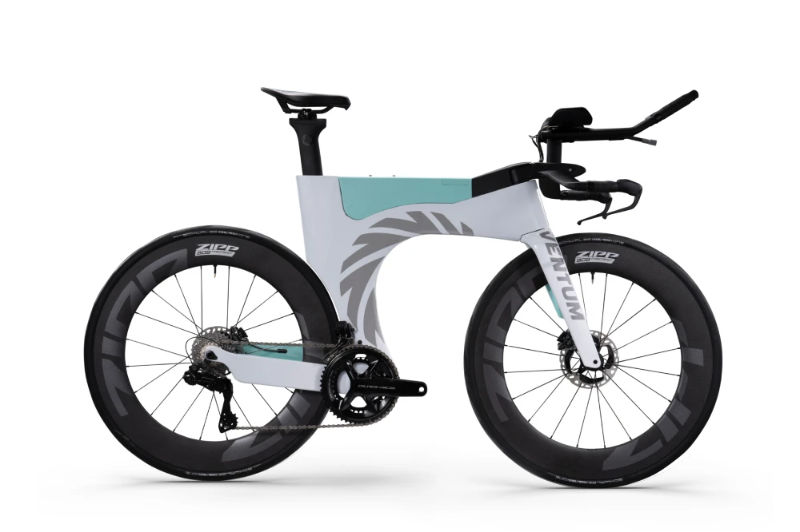

2025 Ventum One Disc geometry
Full frame geometry for the 2025 Ventum One Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 499 | 380 | 82 | 72.6 | 82 | 451 | 76 | 565 | 399 | 951 |
| S | 505 | 397 | 82 | 72.5 | 90 | 467 | 75 | 582 | 399 | 971 |
| M | 510 | 394 | 82 | 72.5 | 95 | 470 | 75 | 584 | 399 | 970 |
| M/L | 528 | 409 | 82 | 72.5 | 114 | 485 | 75 | 603 | 399 | 990 |
| L | 545 | 422 | 82 | 72.5 | 132 | 500 | 75 | 622 | 399 | 1009 |
| XL | 564 | 437 | 82 | 72.5 | 152 | 518 | 75 | 643 | 399 | 1030 |
All measurements in millimetres unless marked (°) for angles.
