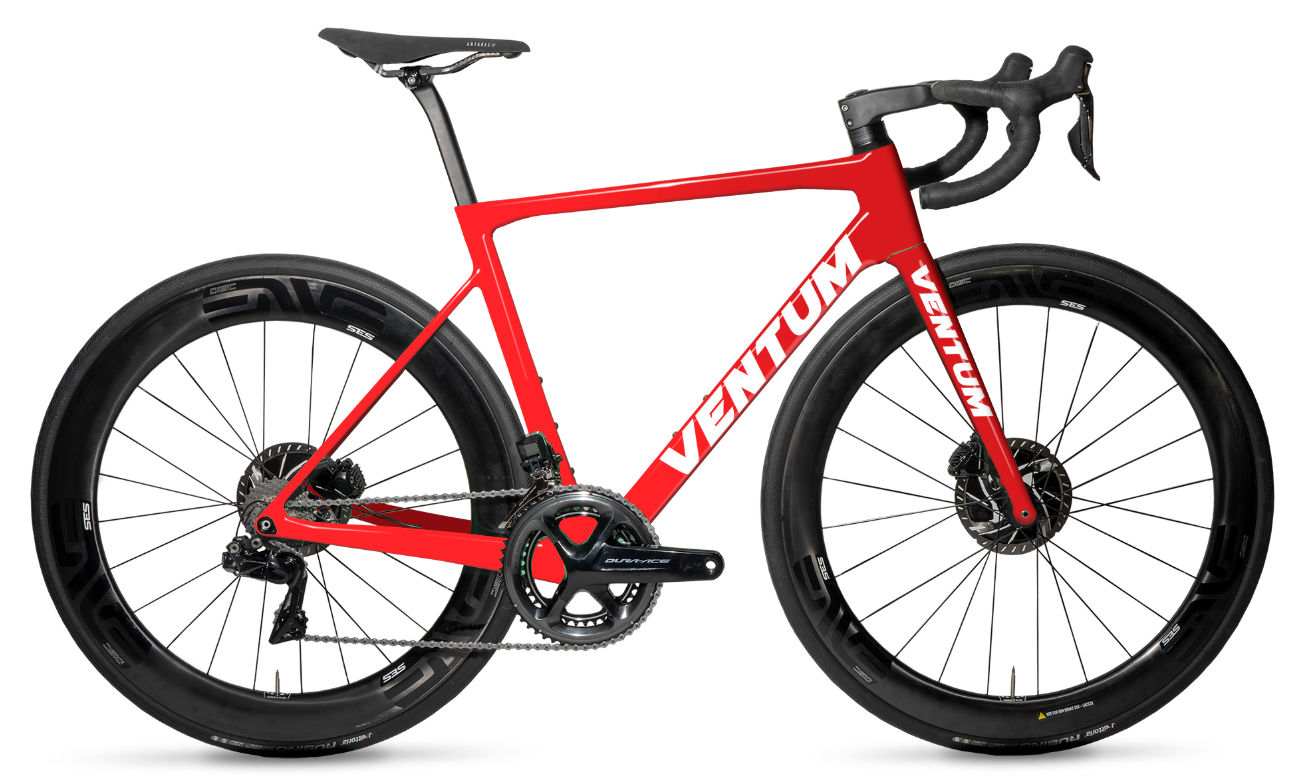

2019 Ventum NS1 geometry
Full frame geometry for the 2019 Ventum NS1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 490 | 365 | 73.5 | 71 | 82 | 513 | 447 | 700 | 74 | 568 | 404 | 972 | 47 | 63 |
| S | 514 | 375 | 73.5 | 72 | 110 | 531 | 467 | 728 | 74 | 569 | 404 | 973 | 47 | 63 |
| M | 547 | 386 | 73 | 73 | 134 | 549 | 500 | 750 | 74 | 578 | 404 | 982 | 47 | 63 |
| ML | 560 | 394 | 73 | 73 | 151 | 567 | 515 | 776 | 74 | 590 | 404 | 994 | 47 | 63 |
| L | 589 | 406 | 73 | 73 | 185 | 584 | 546 | 810 | 74 | 610 | 404 | 1014 | 47 | 63 |
| XL | 611 | 414 | 73 | 73 | 205 | 602 | 568 | 834 | 74 | 624 | 404 | 1028 | 47 | 63 |
All measurements in millimetres unless marked (°) for angles.
