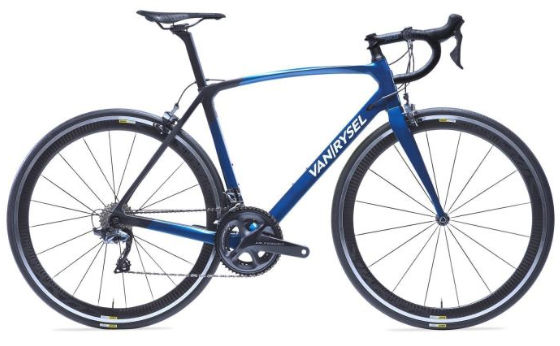

2019 Van Rysel Ultra RCR CF geometry
Full frame geometry for the 2019 Van Rysel Ultra RCR CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 516 | 382 | 74 | 72 | 115 | 530 | 460 | 405 | 972 |
| S | 532 | 388 | 73.5 | 73 | 130 | 545 | 480 | 405 | 974 |
| M | 548 | 398 | 73.5 | 73 | 15 | 560 | 490 | 405 | 991 |
| L | 572 | 401 | 73.5 | 73 | 175 | 570 | 510 | 405 | 1001 |
| XL | 596 | 403 | 73 | 73 | 200 | 585 | 530 | 405 | 1011 |
All measurements in millimetres unless marked (°) for angles.
