2019 Van Rysel · RW

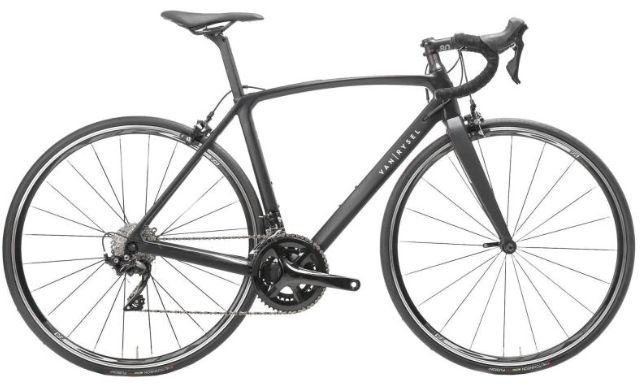

2019 Van Rysel Ultra CF Womens geometry
Full frame geometry for the 2019 Van Rysel Ultra CF Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XXS | 508 | 364 | 74 | 71 | 110 | 510 | 460 | 405 | 967 |
| XS | 516 | 382 | 74 | 72 | 115 | 530 | 460 | 405 | 972 |
| S | 532 | 388 | 73.5 | 73 | 130 | 545 | 480 | 405 | 974 |
All measurements in millimetres unless marked (°) for angles.
