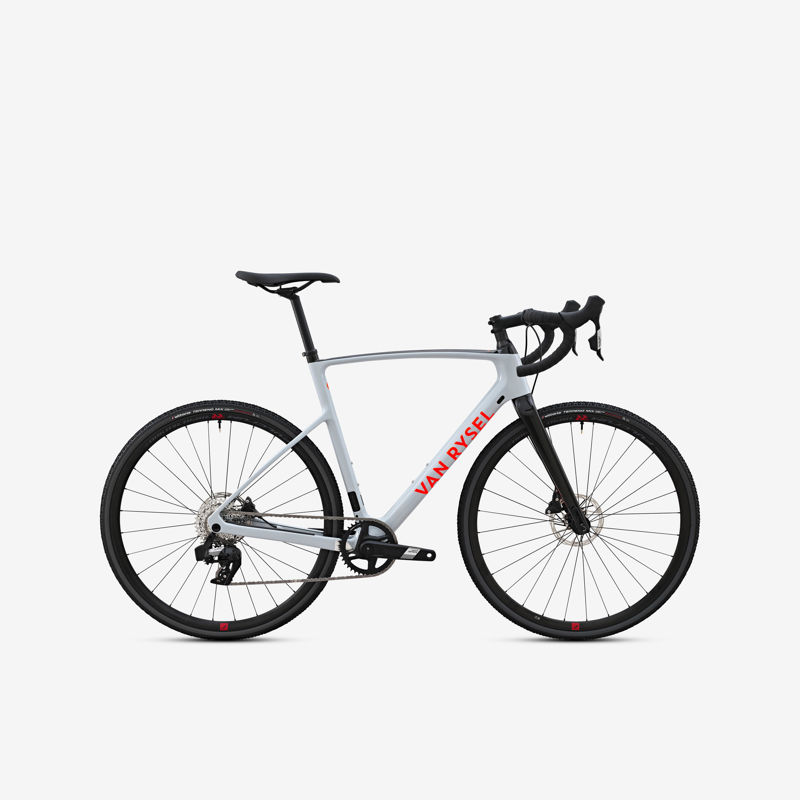

2023 Van Rysel RCX geometry
Full frame geometry for the 2023 Van Rysel RCX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 540.3 | 368.3 | 75.5 | 70 | 123 | 508 | 500 | 65 | 425 | 1014.5 | 50 |
| S | 552.7 | 375.5 | 74 | 71 | 132 | 534 | 540 | 65 | 425 | 1016.3 | 50 |
| M | 564.9 | 382.7 | 73.5 | 71.5 | 145 | 550 | 574 | 63 | 425 | 1023.6 | 50 |
| L | 588.7 | 390.8 | 73.3 | 72 | 168 | 568 | 600 | 63 | 425 | 1034.5 | 50 |
| XL | 607.6 | 401.2 | 73 | 72 | 190 | 587 | 620 | 61 | 425 | 1052 | 50 |
All measurements in millimetres unless marked (°) for angles.
