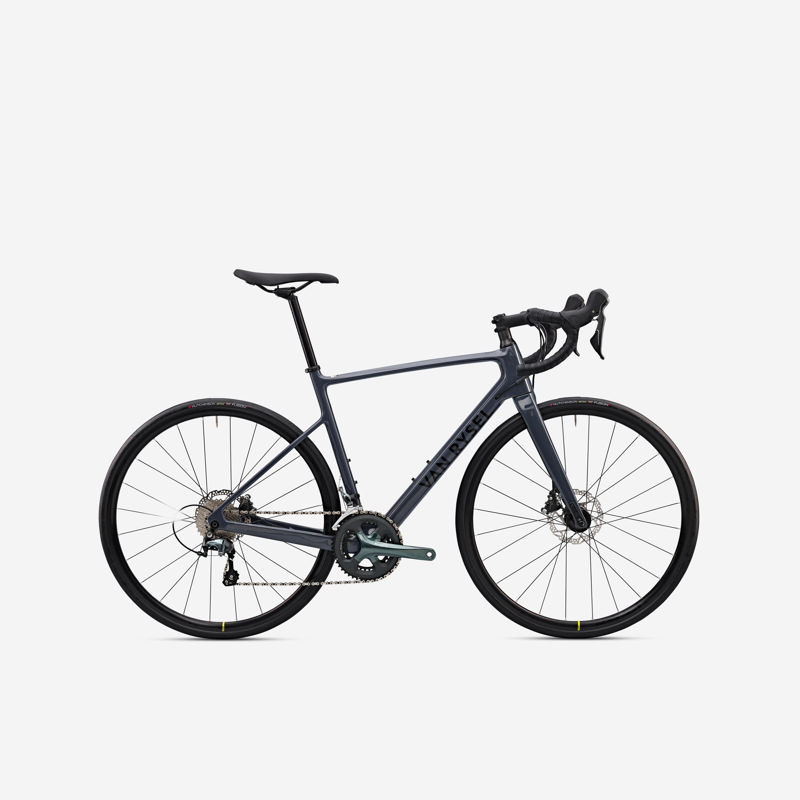

2023 Van Rysel NCR geometry
Full frame geometry for the 2023 Van Rysel NCR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 509.4 | 363.9 | 74 | 71 | 97 | 510 | 475 | 73 | 418 | 973.4 | 45 |
| XS | 514.8 | 382.4 | 74 | 72 | 102 | 530 | 485 | 70.3 | 418 | 986.3 | 45 |
| S | 529.1 | 386.2 | 73.5 | 73 | 117 | 543 | 505 | 67 | 418 | 987.2 | 45 |
| M | 548.3 | 392.6 | 73.5 | 73 | 137 | 555 | 515 | 67 | 418 | 999.4 | 45 |
| L | 572.2 | 396.5 | 73.5 | 73 | 162 | 566 | 535 | 67 | 418 | 1010.7 | 45 |
| XL | 596.1 | 402.8 | 73 | 73 | 187 | 585 | 555 | 67 | 418 | 1024.3 | 45 |
All measurements in millimetres unless marked (°) for angles.
