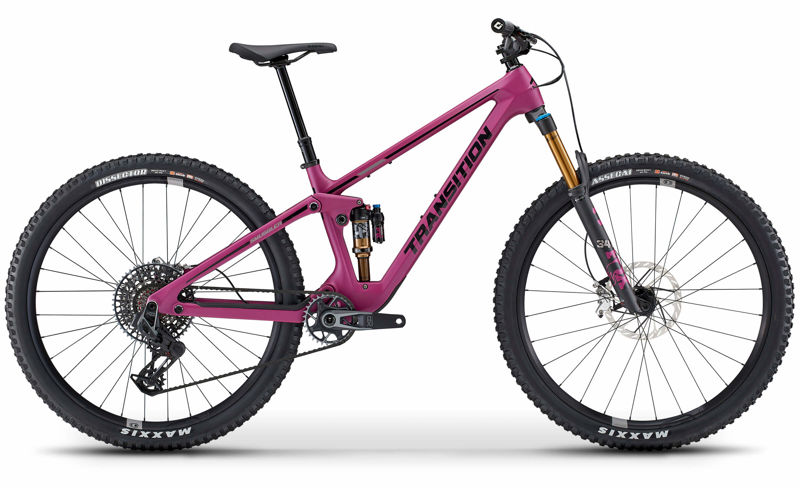

2023 Transition Smuggler geometry
Full frame geometry for the 2023 Transition Smuggler, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| SM | 607 | 430 | 72 | 65 | 100 | 555 | 360 | 35 | 435 | 1179 |
| MD | 616 | 460 | 72 | 65 | 110 | 588 | 390 | 35 | 435 | 1213 |
| LG | 625 | 485 | 72 | 65 | 120 | 617 | 430 | 35 | 440 | 1247 |
| XL | 635 | 510 | 72 | 65 | 130 | 645 | 460 | 35 | 440 | 1277 |
| XXL | 644 | 535 | 72 | 65 | 140 | 670 | 490 | 35 | 440 | 1306 |
All measurements in millimetres unless marked (°) for angles.
