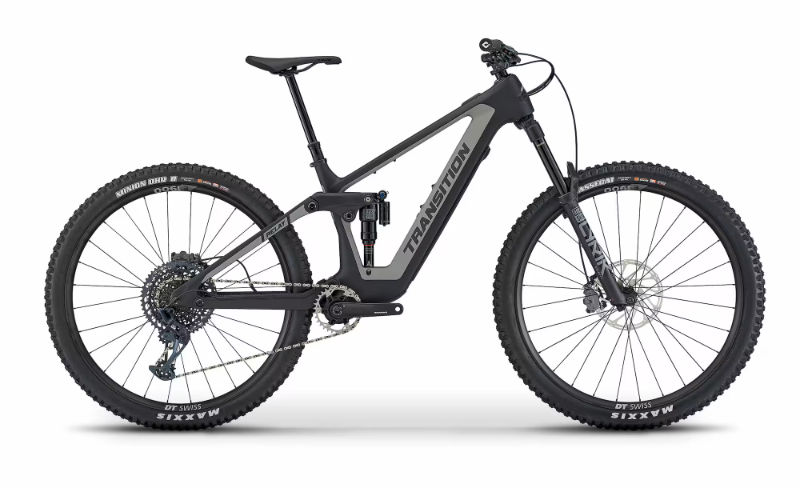

2026 Transition Relay Carbon geometry
Full frame geometry for the 2026 Transition Relay Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 590 | 410 | 79.7 | 64 | 100 | 523 | 380 | 15 | 436 | 1167 | 37 |
| SM | 615 | 430 | 79.1 | 64 | 100 | 553 | 390 | 25 | 442 | 1208 | 44 |
| MD | 628 | 460 | 78.4 | 64 | 115 | 586 | 410 | 25 | 442 | 1244 | 44 |
| LG | 637 | 485 | 77.8 | 64 | 125 | 614 | 430 | 25 | 448 | 1280 | 44 |
| XL | 646 | 510 | 77.3 | 64 | 135 | 642 | 460 | 25 | 448 | 1309 | 44 |
| XXL | 655 | 535 | 77 | 64 | 145 | 671 | 490 | 25 | 448 | 1338 | 44 |
All measurements in millimetres unless marked (°) for angles.
