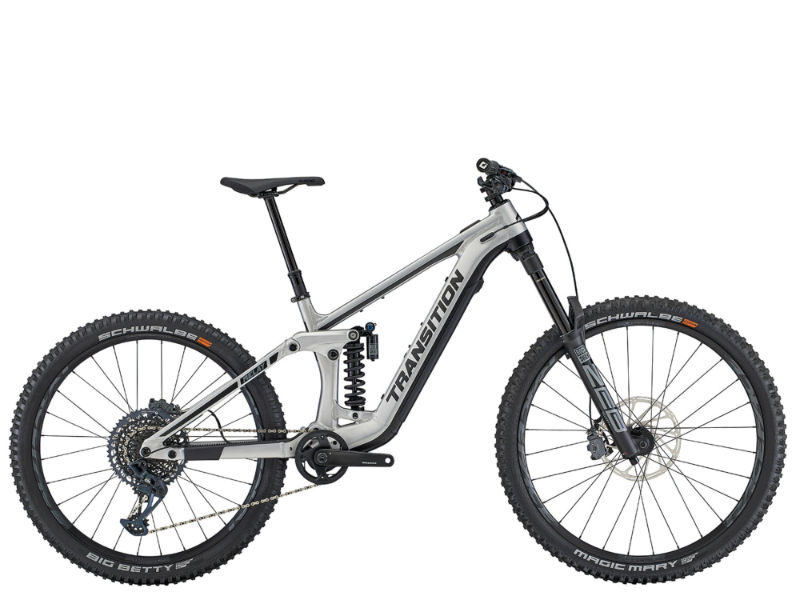

2026 Transition Relay Alloy geometry
Full frame geometry for the 2026 Transition Relay Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 593 | 405 | 79.3 | 63.6 | 105 | 532 | 410 | 11 | 436 | 1172 | 37 |
| SM | 620 | 422 | 78.4 | 63.3 | 105 | 564 | 410 | 25 | 440 | 1211 | 44 |
| MD | 634 | 452 | 77.7 | 63.3 | 115 | 597 | 410 | 25 | 440 | 1247 | 44 |
| LG | 643 | 477 | 77.1 | 63.3 | 125 | 631 | 430 | 25 | 446 | 1282 | 44 |
| XL | 652 | 502 | 76.6 | 63.4 | 135 | 665 | 460 | 25 | 446 | 1312 | 44 |
| XXL | 661 | 527 | 76.3 | 63.4 | 145 | 696 | 490 | 25 | 446 | 1341 | 44 |
All measurements in millimetres unless marked (°) for angles.
