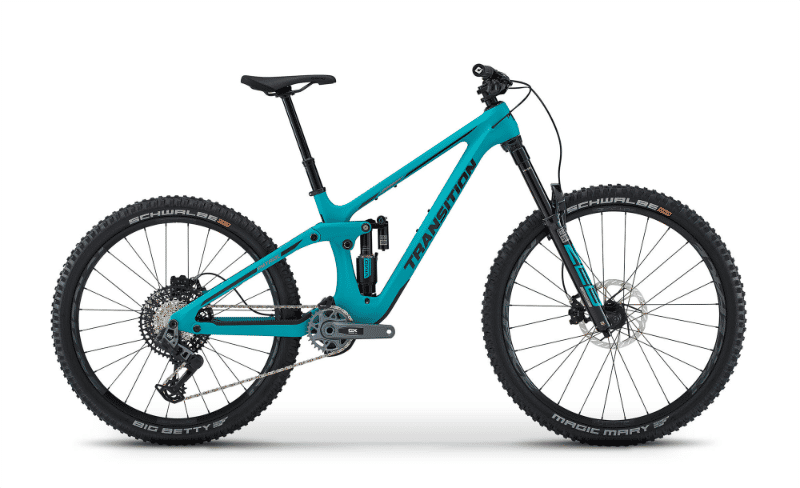

2026 Transition Patrol Carbon geometry
Full frame geometry for the 2026 Transition Patrol Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 623 | 455 | 78.8 | 63.5 | 100 | 578 | 390 | 690 | 35 | 434 | 1231 | 44 |
| SM | 623 | 420 | 79.6 | 63.5 | 100 | 543 | 360 | 675 | 35 | 434 | 1196 | 44 |
| LG | 632 | 480 | 78.1 | 63.5 | 110 | 606 | 430 | 705 | 35 | 440 | 1266 | 44 |
| XL | 641 | 510 | 77.5 | 63.5 | 120 | 639 | 460 | 720 | 35 | 440 | 1301 | 44 |
All measurements in millimetres unless marked (°) for angles.
