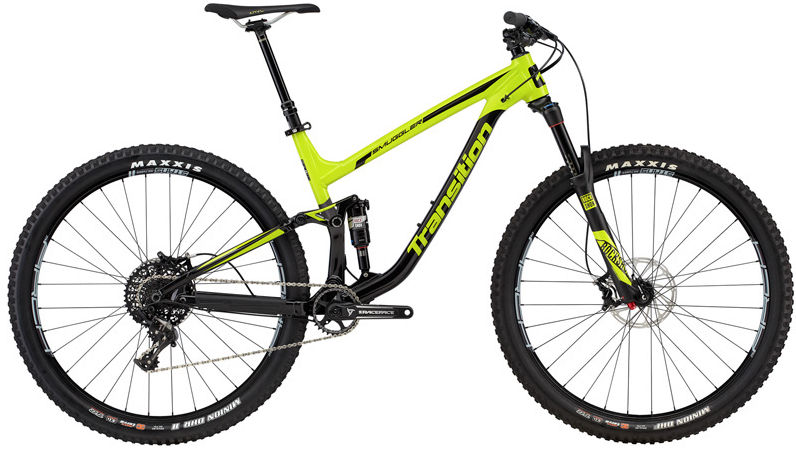

2017 Transition Smuggler geometry
Full frame geometry for the 2017 Transition Smuggler, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 610 | 432 | 75.4 | 67.5 | 100 | 590 | 419 | 686 | 35 | 436 | 1160 | 51 | 98 |
| S | 610 | 406 | 76 | 67.5 | 100 | 564 | 393 | 677 | 35 | 436 | 1134 | 51 | 98 |
| L | 620 | 457 | 74.9 | 67.5 | 110 | 619 | 457 | 696 | 35 | 436 | 1189 | 51 | 98 |
| XL | 629 | 483 | 74.5 | 67.5 | 120 | 647 | 495 | 709 | 35 | 436 | 1218 | 51 | 98 |
All measurements in millimetres unless marked (°) for angles.
