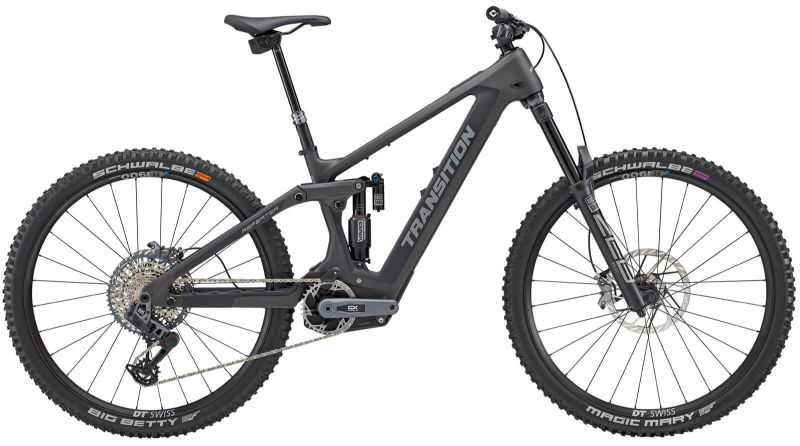

2026 Transition Repeater PT geometry
Full frame geometry for the 2026 Transition Repeater PT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 630 | 425 | 79.2 | 63.5 | 110 | 551 | 380 | 710 | 25 | 455 | 1230 | 44 |
| MD | 635 | 455 | 78.5 | 63.5 | 115 | 584 | 400 | 720 | 25 | 455 | 1262 | 44 |
| LG | 643 | 480 | 78.2 | 63.5 | 125 | 615 | 440 | 730 | 25 | 455 | 1292 | 44 |
| XL | 652 | 510 | 77.5 | 63.5 | 135 | 654 | 470 | 740 | 25 | 455 | 1326 | 44 |
All measurements in millimetres unless marked (°) for angles.
