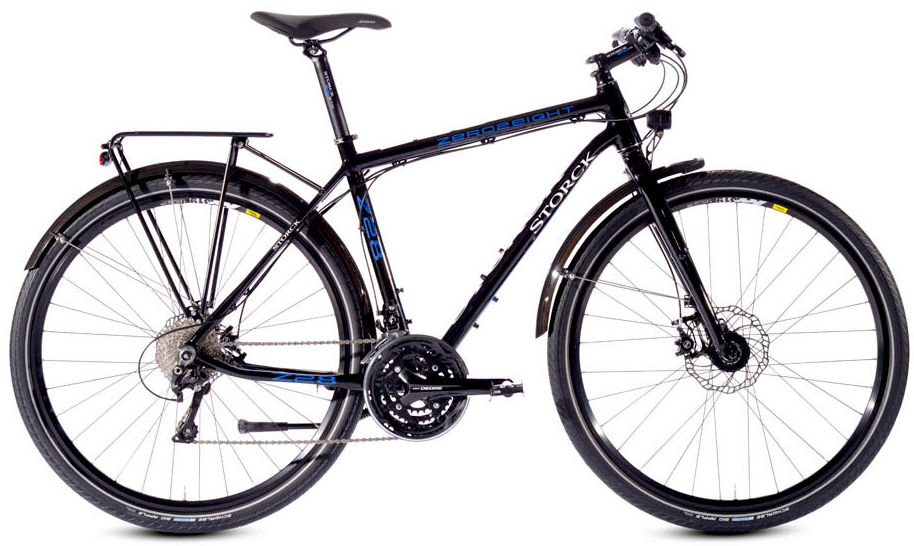

2017 Storck Zero2Eight geometry
Full frame geometry for the 2017 Storck Zero2Eight, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 576 | 370 | 74 | 69.5 | 110 | 535 | 470 | 836 | 50 | 450 |
| M | 592 | 380 | 73.5 | 70 | 128 | 555 | 500 | 861 | 50 | 450 |
| L | 611 | 388 | 73 | 70 | 148 | 575 | 540 | 892 | 50 | 450 |
| XL | 634 | 400 | 72.5 | 70.5 | 170 | 600 | 590 | 930 | 50 | 450 |
All measurements in millimetres unless marked (°) for angles.
