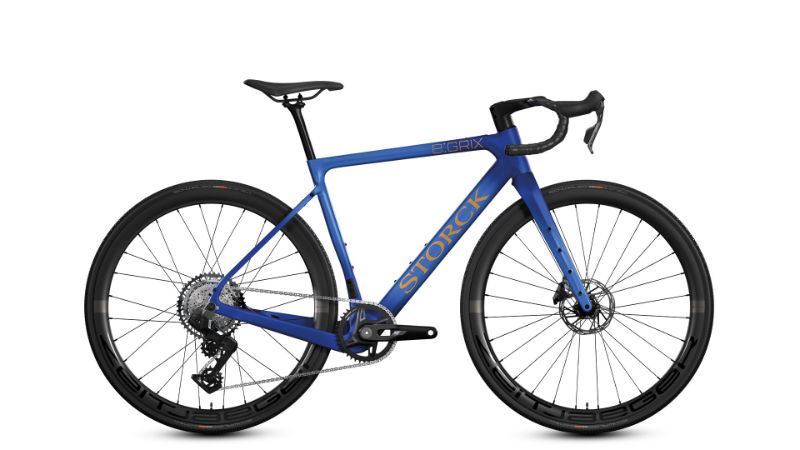

2026 Storck e:Grix geometry
Full frame geometry for the 2026 Storck e:Grix, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 518 | 366 | 72.5 | 69.5 | 101 | 529.3 | 463 | 425 |
| M | 546.7 | 378 | 72.5 | 71.1 | 125 | 550.4 | 493 | 425 |
| L | 575.7 | 390 | 72.5 | 72.5 | 150 | 571.5 | 523 | 425 |
| XL | 604.3 | 402 | 72.5 | 72.5 | 180 | 592.5 | 553 | 425 |
All measurements in millimetres unless marked (°) for angles.
