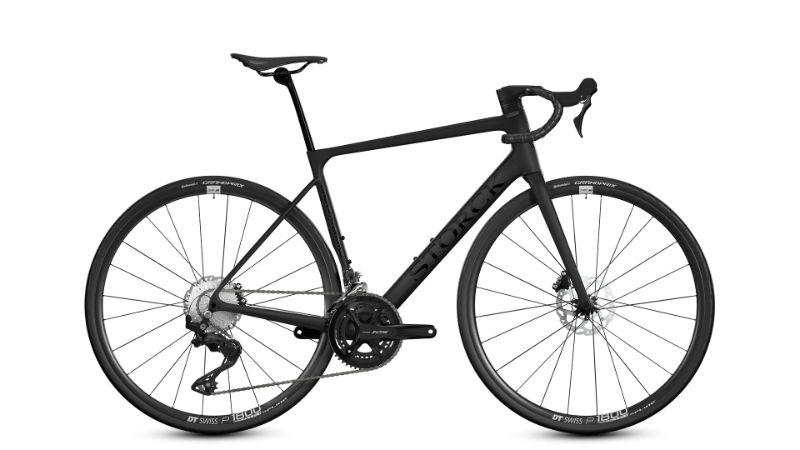

2026 Storck Aernario.3 geometry
Full frame geometry for the 2026 Storck Aernario.3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 543.1 | 387.2 | 73.8 | 72.5 | 132 | 545 | 475 | 407 |
| M | 571.2 | 396.8 | 73.5 | 73.5 | 158 | 566 | 500 | 407 |
| L | 594.2 | 406 | 73.5 | 73.5 | 182 | 582 | 525 | 407 |
| XL | 617.2 | 416.2 | 73.5 | 73.5 | 206 | 599 | 550 | 407 |
| XXL | 639.2 | 420.7 | 73.5 | 73.5 | 229 | 610 | 580 | 407 |
All measurements in millimetres unless marked (°) for angles.
