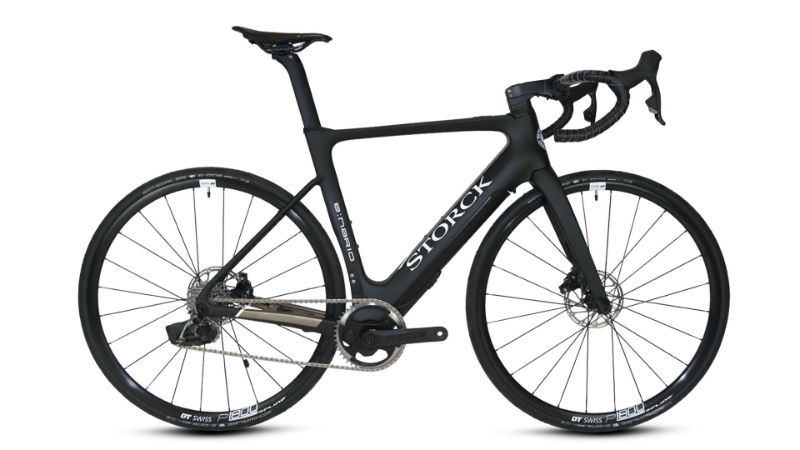

2026 Storck e:nario geometry
Full frame geometry for the 2026 Storck e:nario, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 539.8 | 365.3 | 72 | 71.5 | 130 | 579 | 470 | 415 |
| S | 541.6 | 369.7 | 72 | 72 | 130 | 579.3 | 500 | 415 |
| M | 552.9 | 383.3 | 72 | 72.5 | 140 | 591.8 | 530 | 415 |
| L | 573.8 | 384.6 | 72 | 73 | 160 | 594.6 | 550 | 415 |
| XL | 594.7 | 402.5 | 72 | 73.5 | 180 | 613.7 | 580 | 415 |
All measurements in millimetres unless marked (°) for angles.
