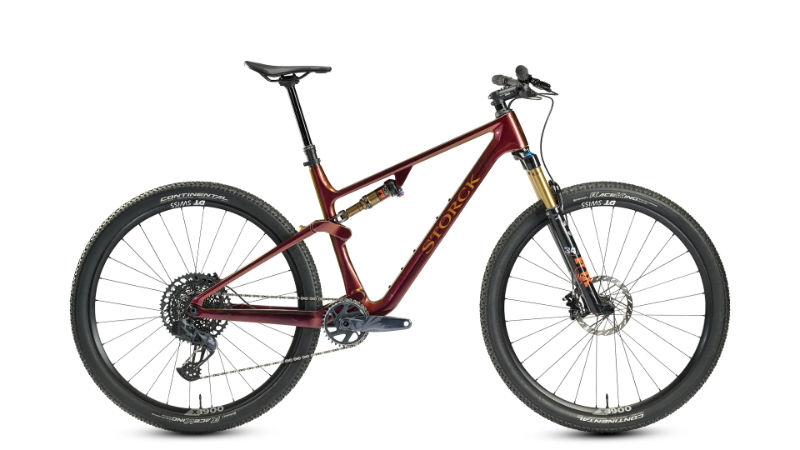

2026 Storck Adrenalin.2 geometry
Full frame geometry for the 2026 Storck Adrenalin.2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 591 | 420 | 76 | 66 | 90 | 567.4 | 400 | 70 | 440 |
| M | 599.5 | 440 | 76 | 66 | 100 | 589.5 | 440 | 70 | 440 |
| L | 608.6 | 460 | 76 | 66 | 110 | 611.7 | 480 | 70 | 440 |
| XL | 618 | 485 | 76 | 66 | 120 | 639.1 | 520 | 70 | 440 |
All measurements in millimetres unless marked (°) for angles.
