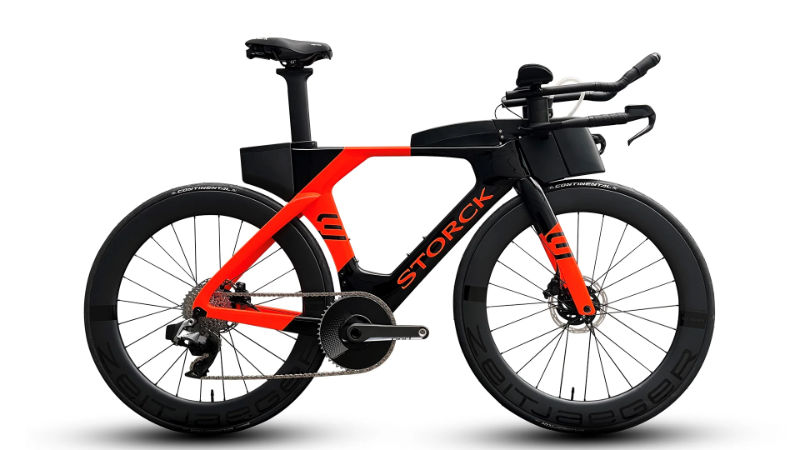

2026 Storck Aero3 geometry
Full frame geometry for the 2026 Storck Aero3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|
| XS | 479 | 372 | 72.5 | 80 | 500 | 387 |
| S | 480 | 398 | 72.8 | 80 | 520 | 387 |
| M | 506 | 415 | 72.8 | 107 | 540 | 387 |
| L | 532 | 431 | 72.8 | 135 | 560 | 387 |
| XL | 558 | 447 | 72.8 | 160 | 580 | 387 |
All measurements in millimetres unless marked (°) for angles.
