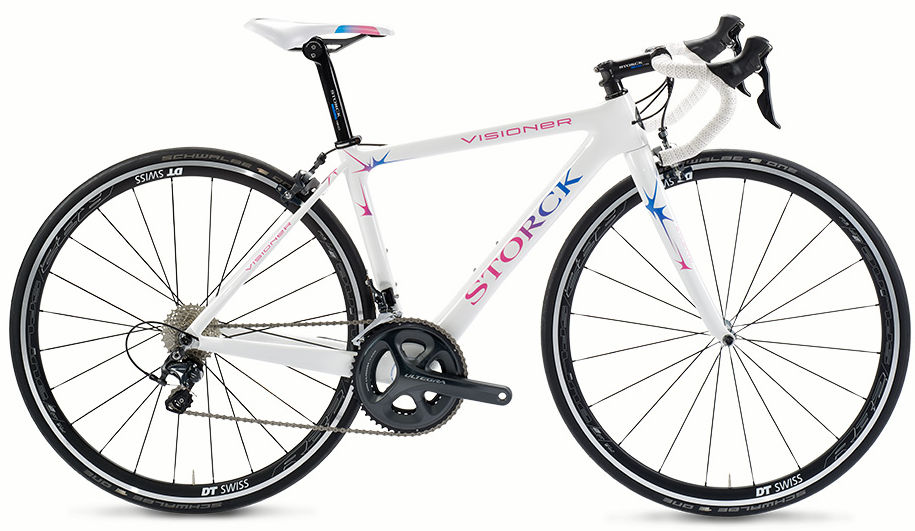

2017 Storck Visioner Prana geometry
Full frame geometry for the 2017 Storck Visioner Prana, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 506 | 377 | 74.5 | 70 | 100 | 518 | 440 | 742 | 68 | 400 | 38 |
| 51 | 526 | 398 | 74 | 72.5 | 115 | 549 | 500 | 783 | 68 | 399 | 38 |
| 47 | 530 | 381 | 75 | 71 | 124 | 525 | 470 | 769 | 68 | 399 | 38 |
| 55 | 552 | 402 | 73.5 | 73.5 | 139 | 566 | 530 | 813 | 68 | 399 | 38 |
All measurements in millimetres unless marked (°) for angles.
