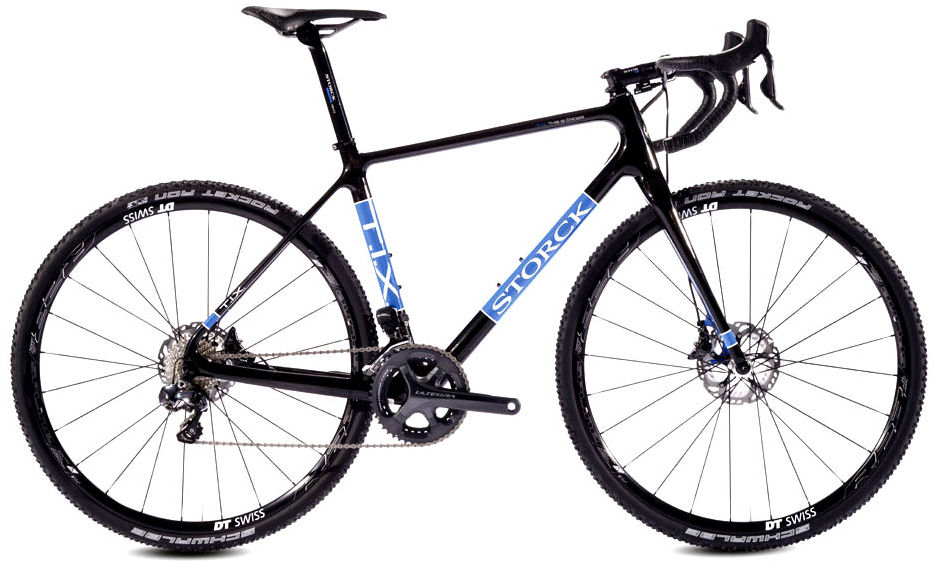

2017 Storck T.I.X. geometry
Full frame geometry for the 2017 Storck T.I.X., size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 526 | 351 | 74 | 69 | 125 | 504 | 455 | 768 | 68 | 425 | 48 |
| M | 535 | 382 | 73.5 | 71 | 150 | 541 | 495 | 794 | 68 | 425 | 48 |
| S | 540 | 361 | 73.5 | 69.5 | 138 | 523 | 475 | 786 | 68 | 425 | 48 |
| L | 570 | 386 | 73 | 72 | 163 | 560 | 525 | 828 | 68 | 425 | 48 |
| XL | 580 | 408 | 73 | 72 | 175 | 585 | 545 | 843 | 68 | 425 | 48 |
All measurements in millimetres unless marked (°) for angles.
