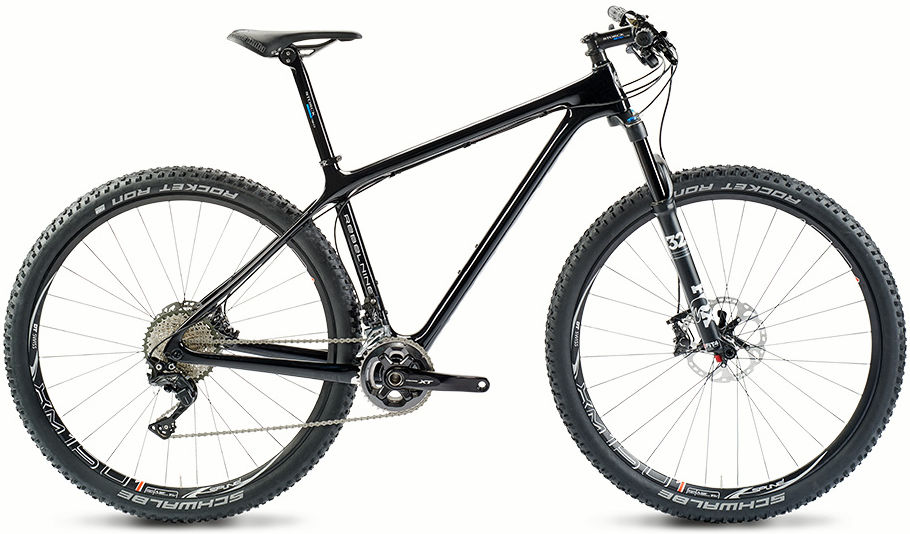

2017 Storck Rebel 9 geometry
Full frame geometry for the 2017 Storck Rebel 9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 602 | 411 | 73 | 71 | 90 | 595 | 430 | 836 | 50 | 435 |
| M | 607 | 430 | 73 | 71 | 95 | 615 | 455 | 852 | 50 | 435 |
| L | 611 | 443 | 73 | 71 | 100 | 630 | 530 | 893 | 50 | 435 |
All measurements in millimetres unless marked (°) for angles.
