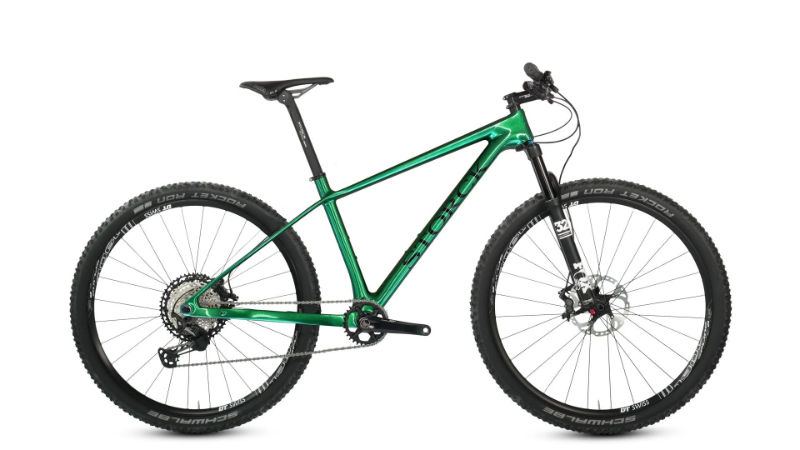

2026 Storck Rebel.4 geometry
Full frame geometry for the 2026 Storck Rebel.4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| M | 608 | 430 | 74 | 68.5 | 95 | 603.9 | 430 | 430 |
| S | 608 | 405 | 74 | 68.5 | 95 | 579.4 | 400 | 430 |
| L | 622 | 455 | 74 | 68.5 | 110 | 633.4 | 470 | 430 |
| XL | 636 | 480 | 74 | 68.5 | 125 | 662.4 | 520 | 430 |
All measurements in millimetres unless marked (°) for angles.
