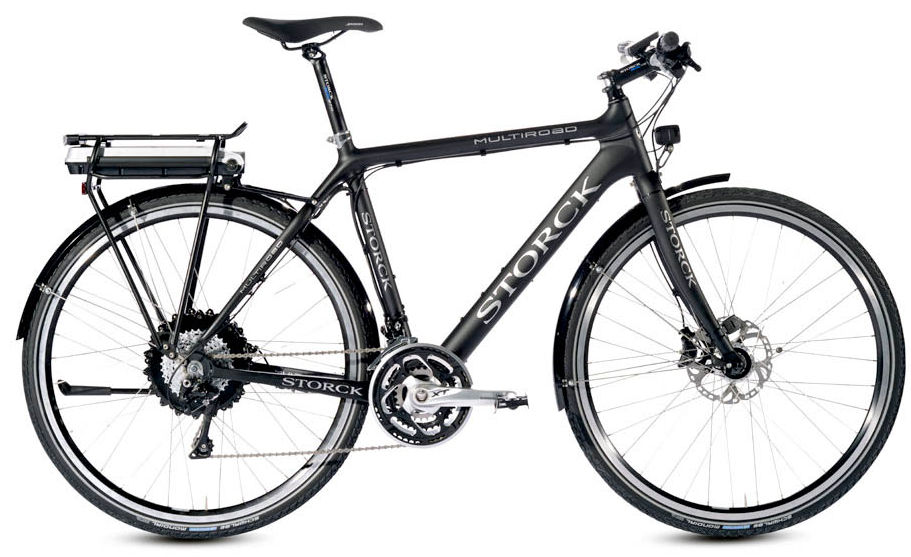

2017 Storck Raddar Multiroad Carbon geometry
Full frame geometry for the 2017 Storck Raddar Multiroad Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 546 | 381 | 74 | 70 | 110 | 540 | 490 | 798 | 68 | 446 |
| 52 | 568 | 389 | 73.5 | 70.5 | 130 | 560 | 520 | 825 | 68 | 445 |
| 55 | 587 | 393 | 73 | 70.5 | 150 | 575 | 550 | 851 | 68 | 445 |
| 58 | 613 | 393 | 72.5 | 71 | 170 | 590 | 580 | 881 | 68 | 445 |
| 61 | 634 | 403 | 72 | 71.5 | 190 | 610 | 610 | 908 | 68 | 445 |
All measurements in millimetres unless marked (°) for angles.
