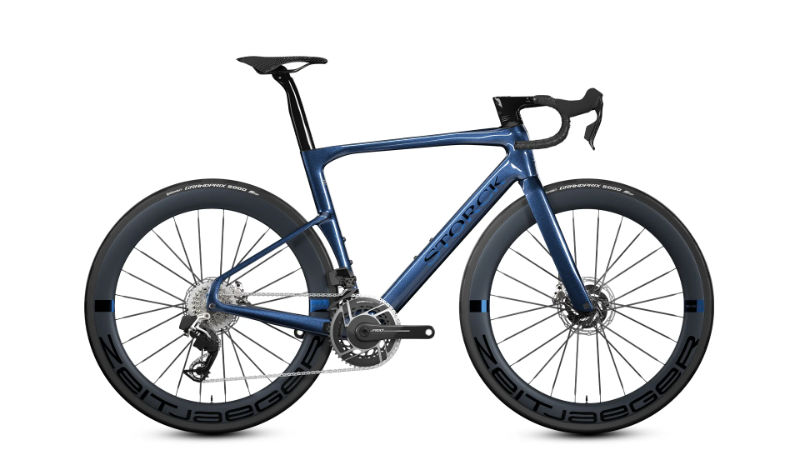

2026 Storck Fascenario.5 geometry
Full frame geometry for the 2026 Storck Fascenario.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 514 | 378 | 74.5 | 71.5 | 107.3 | 520.5 | 450 | 415 |
| S | 532 | 388 | 73.8 | 72 | 124.4 | 543.6 | 480 | 415 |
| M | 548.6 | 397 | 73.5 | 72.5 | 140 | 559.5 | 510 | 415 |
| L | 573.2 | 406.7 | 73.5 | 73 | 164 | 576.5 | 535 | 415 |
| XL | 593 | 412 | 73.5 | 73 | 184.7 | 587.7 | 560 | 415 |
All measurements in millimetres unless marked (°) for angles.
