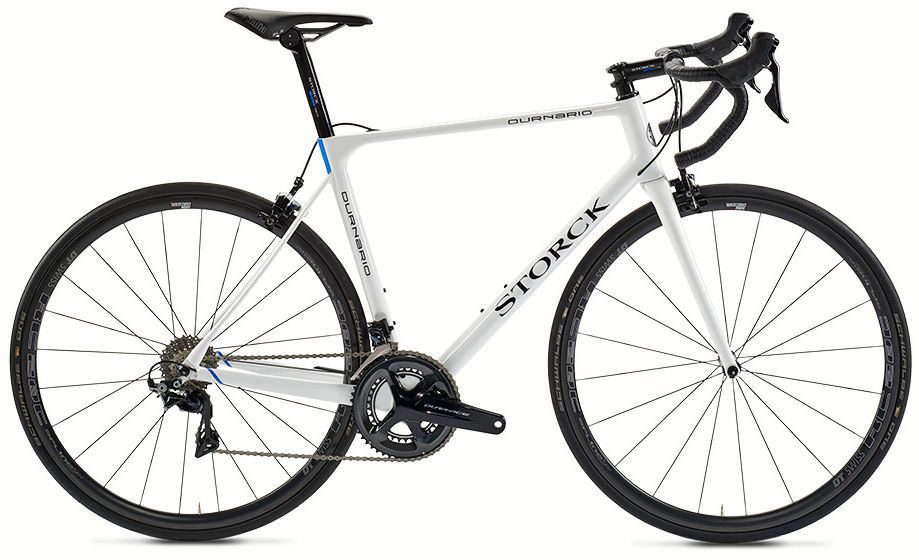

2017 Storck Durnario geometry
Full frame geometry for the 2017 Storck Durnario, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 506 | 377 | 74.5 | 70 | 100 | 518 | 440 | 745 | 68 | 400 | 38 |
| S | 524 | 389 | 74.2 | 71 | 115 | 538 | 465 | 767 | 68 | 400 | 38 |
| M | 547 | 401 | 73.8 | 72.2 | 138 | 560 | 500 | 797 | 68 | 405 | 38 |
| L | 568 | 412 | 73.5 | 73 | 158 | 580 | 520 | 818 | 68 | 405 | 38 |
| XL | 586 | 421 | 73.2 | 73.2 | 175 | 595 | 540 | 838 | 68 | 410 | 38 |
All measurements in millimetres unless marked (°) for angles.
