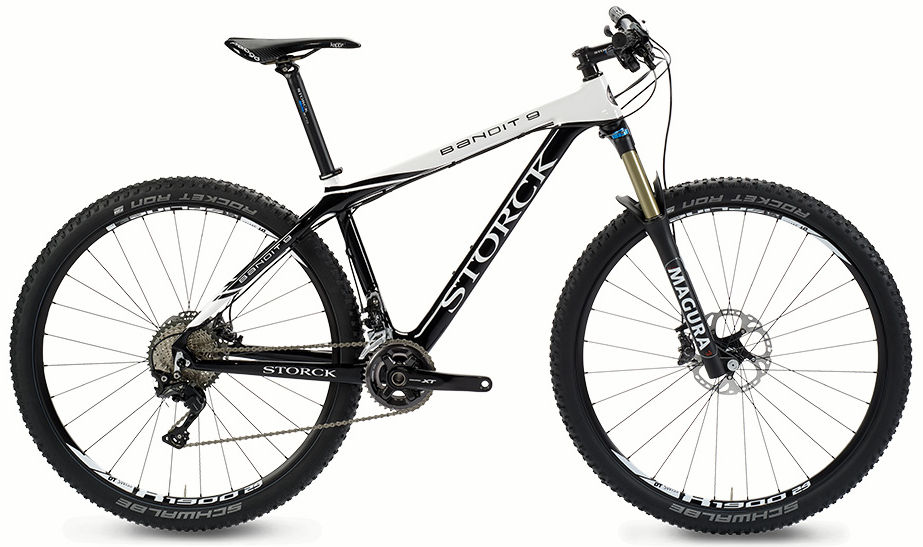

2017 Storck Bandit geometry
Full frame geometry for the 2017 Storck Bandit, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 582 | 422 | 73 | 71 | 95 | 600 | 432 | 827 | 50 | 436 |
| L | 587 | 440 | 73 | 71 | 100 | 620 | 483 | 856 | 50 | 436 |
All measurements in millimetres unless marked (°) for angles.
