2017 Storck · T

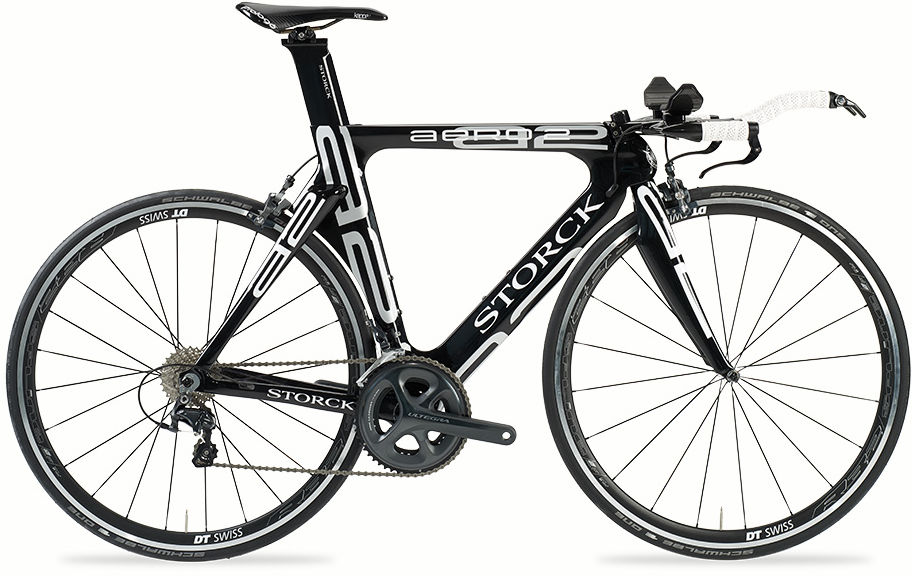

2017 Storck Aero 2 geometry
Full frame geometry for the 2017 Storck Aero 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 468 | 386 | 74 | 71.5 | 60 | 503 | 516 | 763 | 68 | 43 |
| 51 | 488 | 396 | 74 | 72 | 80 | 517 | 537 | 784 | 68 | 43 |
| 55 | 509 | 420 | 74 | 72.5 | 100 | 538 | 559 | 805 | 68 | 43 |
All measurements in millimetres unless marked (°) for angles.
