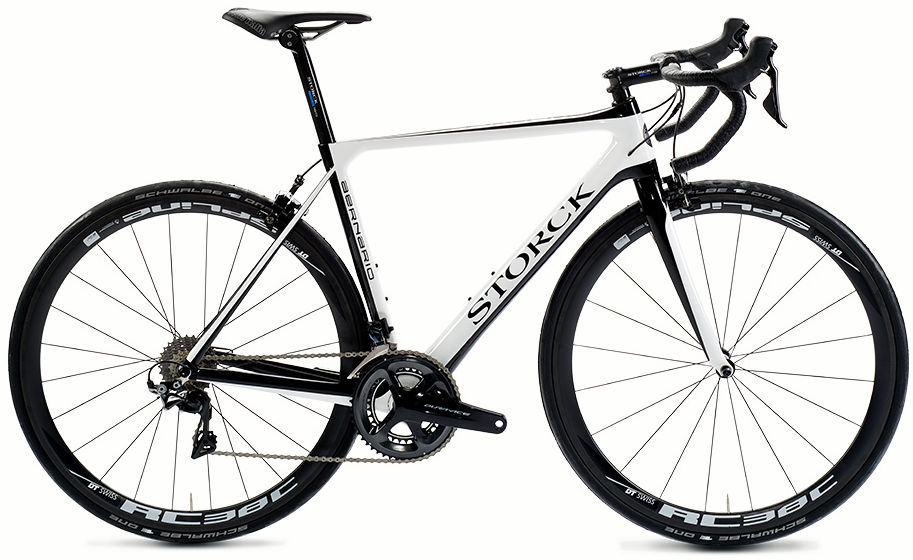

2017 Storck Aernario geometry
Full frame geometry for the 2017 Storck Aernario, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 526 | 399 | 73.8 | 72.5 | 115 | 551 | 469 | 767 | 68 | 399 | 38 |
| 47 | 530 | 381 | 75 | 71 | 124 | 525 | 470 | 769 | 68 | 399 | 38 |
| 55 | 552 | 403 | 73.5 | 73.5 | 139 | 566 | 500 | 797 | 68 | 399 | 38 |
| 57 | 574 | 406 | 73.5 | 73.5 | 162 | 576 | 520 | 818 | 68 | 399 | 38 |
| 59 | 592 | 405 | 73.5 | 73.5 | 184 | 581 | 540 | 838 | 68 | 399 | 38 |
| 63 | 638 | 416 | 73.5 | 73.5 | 229 | 605 | 580 | 882 | 68 | 399 | 38 |
All measurements in millimetres unless marked (°) for angles.
