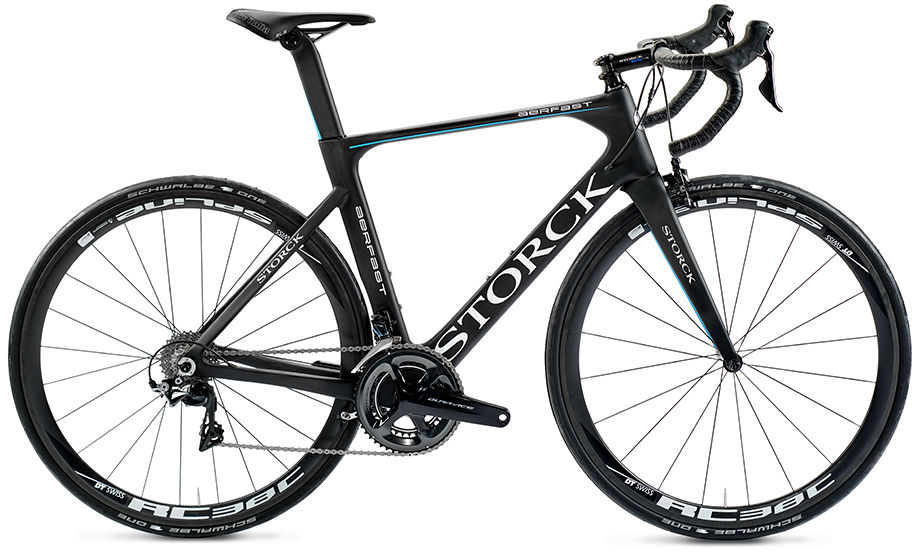

2017 Storck Aerfast geometry
Full frame geometry for the 2017 Storck Aerfast, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 358 | 73 | 70.8 | 128 | 520 | 460 | 766 | 68 | 405 | 38 |
| S | 552 | 369 | 73 | 71.5 | 148 | 538 | 480 | 787 | 68 | 405 | 38 |
| M | 571 | 381 | 73 | 72.2 | 168 | 555 | 495 | 804 | 68 | 405 | 38 |
| L | 597 | 400 | 73.2 | 73 | 193 | 580 | 520 | 830 | 68 | 405 | 38 |
| XL | 632 | 413 | 73.5 | 73.5 | 230 | 600 | 540 | 858 | 68 | 405 | 38 |
All measurements in millimetres unless marked (°) for angles.
